PTC Heater Plate 12V 24V 30x30x6mm Thermostat Aluminum PTC Heating Element 50-230 Degrees Air Electric Heater

Name: PTC Heater Plate 12V 24V 30x30x6mm Thermostat Aluminum PTC Heating Element 50230 Degrees Air Electric Heater
Brand: TIAN RUI
Price: 1 USD

Brand Name : TIAN RUI

Model Number : Heating Element PTC Thermistor

Certification : ROHS

Place of Origin : China

MOQ : 1000PCS

Price : Negotiable

Payment Terms : D/P, T/T,Paypal, Western Union

Supply Ability : 1000000PCS/Month

Delivery Time : 5-7 Days

Packaging Details : 1000PCS/Bag

Type : Chip Type

Resistance : 3.5Ω-1200Ω

Tolerance : 20% 25% 30%

Curie Temperature : 290C

Voltage : 220V

Size : 30x15x3.4mm

Storage Temp : -10C~+40C

Technology : Ceramic Composition

Electrode : Silver Electrode

Contact Now

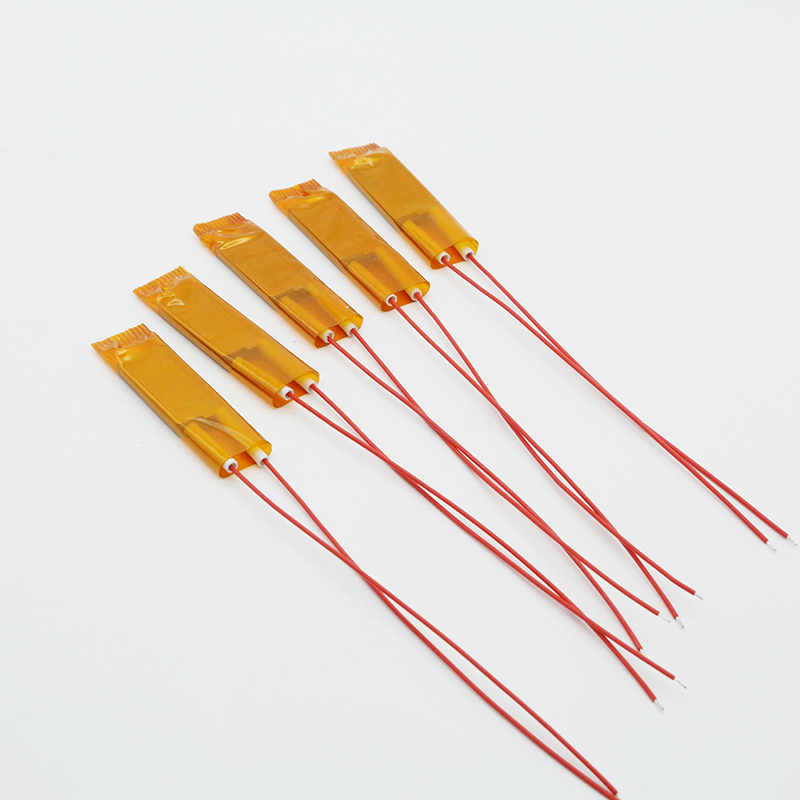

50W 12V Insulated Electric Ceramic Thermostatic PTC Heating Heater Thermistor PTC

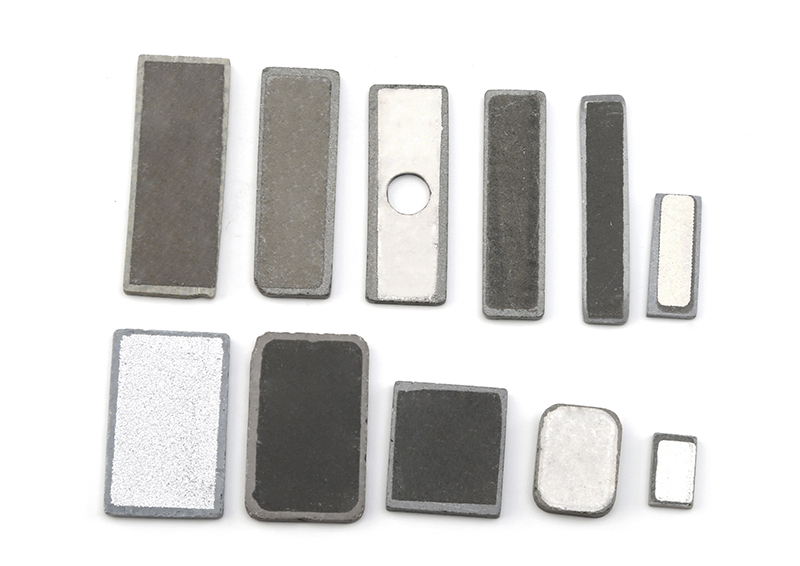

PTC thermistor ceramic heating element has the special functions of constant temperature, temperature adjustment and self-temperature control. When AC or DC voltage is applied to the PTC element, below the Curie point, the resistivity is very low and the temperature rises very quickly. Once the Curie point temperature is exceeded, the resistivity suddenly increases, causing the current to drop to a stable value, achieving the purpose of automatic temperature control and constant temperature. No additional temperature control circuit device is required, and the Curie temperature of the PTC element can be adjusted through formulation according to different temperature requirements to achieve the required working temperature in different application scenarios.

PTC Heater Plate 12V 24V 30x30x6mm Thermostat Aluminum PTC Heating Element 50-230 Degrees Air Electric Heater

Specification

Product Name	PTC Thermistor
Resistance	3.5Ω-1200Ω
Voltage	110V-220V

PTC Heater Plate 12V 24V 30x30x6mm Thermostat Aluminum PTC Heating Element 50-230 Degrees Air Electric Heater
